CARACTERISTIQUES TECHNIQUES
Formats supportés en fonction des entrées :
SUR ENTREE USB (Type-B)
Format DSD : Fréquence d’échantillonnage : 2.8MHz (176.4kHz/24bit DoP transfer)
Format PCM : Fréquence d’échantillonnage : 32 / 44.1 / 48 / 88.2 / 96 /176.4 / 192 / 352.8 / 384 kHz
Quantification : 16 / 24 / 32bits
SUR ENTREE numérique RCA (coaxiale) :
Format DSD : Fréquence d’échantillonnage : 2.8MHz (176.4kHz/24bit DoP transfer)
Format PCM : Fréquence d’échantillonnage : 32 / 44.1 / 48 / 88.2 / 96 /176.4 / 192 kHz
Quantification : 16 / 24 bits
SUR ENTREE numérique OPTIQUE (Tos link) :
Niveau d’entrée : –24.0 à –14/5dBm peak
Format DSD : Fréquence d’échantillonnage : 2.8MHz (176.4kHz/24bit DoP transfer)
Format PCM : Fréquence d’échantillonnage : 32 / 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Quantification : 16 / 24 bits

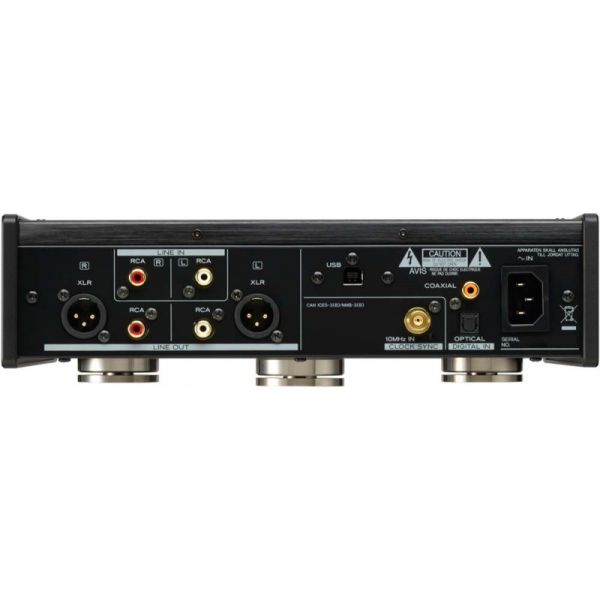

CONNECTIQUE
Entrées numériques :
1x Entrée USB: Type B/ V2.0/Transfert Asynchrone
1x Entrée numérique RCA
Niveau d’entrée : 0.5Vp-p
Impédance d’entrée : 75 ohms
1x Entrée numérique OPTIQUE
Connecteur TOS-link
Niveau d’entrée : -24.0 à -14.5 dBm peak
Sorties analogiques :
1x paire XLR Symétriques
Type 3-32
Impédance de sortie : 188 Ohms
Niveau de sortie maximum : 4,0VRMS
1x paire RCA Asymétriques
Impédance de sortie : 158 Ohms
Niveau de sortie maximum : 2,0VRMS
2x Prises Casque, jack 6,35mm
Impédance de sortie : 16 à 600 Ohms
Entrée analogique :
1x Paire Jack RCA
Impédance d’entrée : 51k Ohms
Sensibilité : 130mV
PERFORMANCE AUDIO
Bande passante : 5Hz à 80kHz (+1dB/–3dB)
Rapport Signal sur bruit symétrique : 112dB (non pondéré, 1kHz)
Rapport Signal sur bruit asymétrique : 110dB (non pondéré, 1kHz)
Distorsion harmonique Totale maxi : 0,0015% (1kHz, LHF: 20Hz to 20kHz)
Puissance de sortie maximale
Symétrique : 700mW + 700mW (32ohms chargé, THD 1%)
Asymétrique : 500mW + 500mW (32ohms x 1 chargé, THD 1%)
350mW + 350mW (32ohms x 2 chargé, THD 1%)
Niveau de sortie maximal
Fixe (0dB) : 2.0Vrms (XLR/RCA)
Fixe (+6dB) : 4.0Vrms (XLR/RCA)
Variable : 12.0Vrms (XLR), 6Vrms (RCA)
Réglages audio
Sur-échantillonnage : x8, x4, x2, Off
DSD fréquence de coupure : 50kHz, 150kHz
PCM Filtres numériques : FIR Sharp, FIR Slow, Short-delay Sharp, Short-delay Slow
Sortie ligne : RCA, XLR (Pin2: HOT), XLR (Pin3:HOT)
Niveau sortie ligne : Fixe (0dB), Fixe (+6dB), Variable, Off
Compatibilité Logiciels
Windows : Windows 8.1 (32/64bit), Windows 8 (32/64bit), Windows 7 (32/64bit)
Macintosh : Yosemite (OS X10.10), Mavericks (OS X10.9), Mountain Lion (OS X10.8), Lion (OS X10.7)
Télécharger l’application
TEAC HR Audio Player – Mac
TEAC HR Audio Player – PC
Pour en savoir plus sur l’installation, cliquer-ici.
http://www.teac.com/product/hr_audio_player/
Accessoires inclus
1x Cordon d’alimentation
1x Câble audio RCA
1x Télécommande (RC-1319)
2x Piles AAA
3x Coussins pour pieds
1x Mode d’emploi
1x Carte de garantie
Généralités
Alimentation : 230V AC, 50Hz
Consommation en marche/veille : Max 16W / 0.4W
Dimensions (LxHxP) : 290 x 81.2 x 249 mm
Poids : 4.2 Kg
