WAVECOR TEXTILE DOME TWEETER TW030WA01
| Nominal size | 30 | mm |

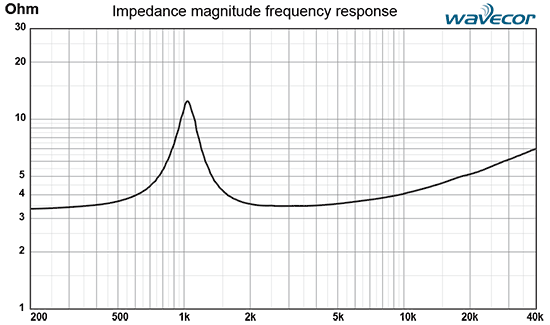

| Nominal impedance | 4 | ohm |
| Recommended frequency range | 2-25 | kHz |

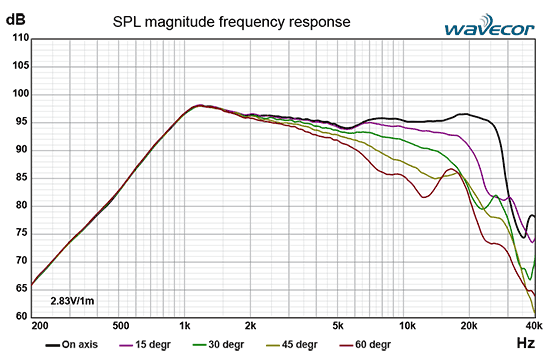

| Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz) | 94 | dB |
| Effective radiating area, Sd | 11.5 | sq.cm |
| Resonance frequency (free air, no baffle), Fs | 1050 | Hz |
| Moving mass, incl. air (free air, no baffle), Mms | 0.48 | g |
| Force factor, Bxl | 2.3 | |
| Suspension compliance, Cms | 0.059 | mm/N |
| Equivalent air volume, Vas | 0.01 | litres |
| Mechanical Q, Qms | 4.8 | |
| Electrical Q, Qes | 1.78 | |
| Total Q, Qts | 1.30 | |
| Voice coil resistance, RDC | 3.4 | ohm |
| Voice coil inductance, Le (measured at 10 kHz) | 0.04 | mH |
| Voice coil inside diameter | 30.4 | mm |
| Voice coil winding height | 1.7 | mm |
| Air gap height | 3.0 | mm |
| Magnet weight | 25.5 | g |
| Total unit net weight excl. packaging | 0.13 | kg |
- MARQUE WAVECOR
- MEMBRANE TISSU
- TAILLE 7.0-9.0 cm
- TYPE AIGU
- TW030WA01-02_specifications
TW030WA01-02_specifications_fr
