TW022WA05
WAVECOR
TW022WA05
WAVECOR TEXTILE DOME TWEETER TW022WA05

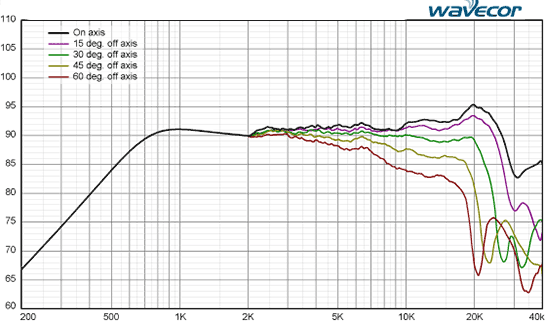

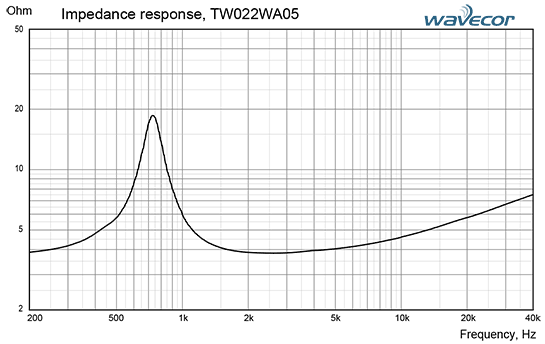

Nominal size | 22 | mm |
Nominal impedance | 4 | ohm |
Recommended frequency range | 2.5-25 | kHz |
Sensitivity, 2.83V/1m (average SPL in range 2 - 20 kHz) | 91.5 | dB |
Effective radiating area, Sd | 6.1 | sq.cm |
Resonance frequency (free air, no baffle), Fs | 750 | Hz |
Moving mass, incl. air (free air, no baffle), Mms | 0.28 | g |
Force factor, Bxl | 1.9 | |
Suspension compliance, Cms | 0.16 | µm/N |
Equivalent air volume, Vas | 8.5 | ml |
Mechanical resistance, Rms | 0.25 | Ns/m |
Mechanical Q, Qms | 2.3 | |
Electrical Q, Qes | 1.36 | |
Total Q, Qts | 1.08 | |
Voice coil resistance, RDC | 3.7 | ohm |
Voice coil inductance, Le (measured at 10 kHz) | 36 | µH |
Voice coil inside diameter | 22 | mm |
Voice coil winding height | 1.8 | mm |
Air gap height | 2.5 | mm |
Theoretical linear motor stroke, Xmax | 0.35 | mm |
Magnet weight | 139 | g |
Total unit net weight excl. packaging | 0.34 | kg |
Krm | 0.0046 | mohm |
Erm | 1.07 | |
Kxm | 1.1 | mH |
Exm | 0.67 |
